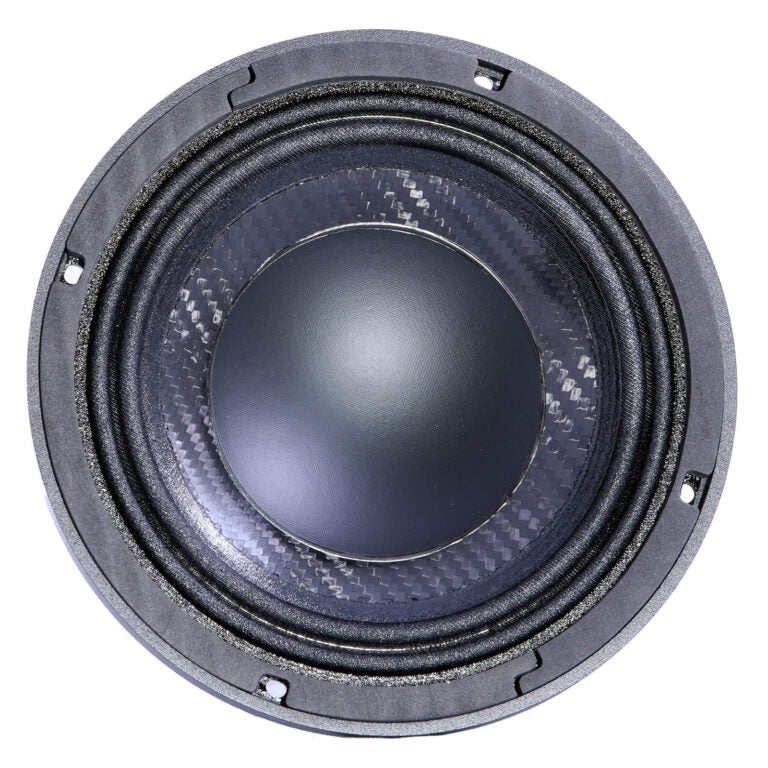

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake ^Sale

Regular price $284.00
2 available

Vendor: Beyma

Type: Audio & Communication, Speakers

Sku: PRO6CF/Nd

In Stock

Hurrify, only a few left:

Compare Wishlist

Currently there are peoples are currently looking at this product

Beyma PRO6CFNd 6.5″ Carbon Fiber Midrange Speake

$284.00

Description Review

Description

NEW BEYMA PRO6CFNd 6.5″ EXTENDED RANGE SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
FEATURES A CARBON FIBER CONE FOR INCREASED CONE STRENGTH & MARINE TREATED PARTS
WIDE FREQUENCY RANGE FROM 95HZ TO 11.2KHZ & HIGH XMAX OF 6.0MM
ACOUSTICALLY BALANCED FREQUENCY RESPONSE & INVERTED DUST CAP
LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.2 LBS.
DESIGNED TO PLAY UPPER BASS, MIDRANGE AND HIGH FREQUENCIES UP TO 11.2KHZ
AVAILABLE IN 8 OHMS

WOOFER MODEL – PRO6CFNd
Specifications
Nominal Basket Diameter	6.5” / 165mm
Impedance	5 ohms
AES Power Rating	200 Watts
Program Power	400 Watts
Frequency Response	95Hz – 11.2KHz
Sensitivity (1W/1m)	93dB
Voice Coil Diameter	2” / 50.8mm
Voice Coil Length	14mm
Air Gap Height	7mm
X Damage (peak to peak)	20mm
Bl Factor (BL)	11.1 N/A
Mounting Information
Overall Diameter	6.8” / 174mm
Bolt Circle Diameter	6.2″ / 158mm
Baffle Cutout Diameter-
– Front Mount	5.7″ / 145mm
No. Of Mounting Holes	4
Overall Depth	3.8” / 96mm
Net Weight	4.2 lb. / 1.9 kg.
Shipping Weight	4.4 lb. / 2.0 kg.
Materials
Basket	Die Cast Aluminum
Cone	Carbon Fiber
Surround	Treated Cloth
Dust Cap Shape	Inverted
Voice Coil	Copper
Former	Fiberglass
Metal Parts	Marine Treated
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	94 Hz
Impedance (Re)	4.8 ohms
Coil Inductance (Le)	.2 mH
Mechanical Q (Qms)	3.8
Electrical Factor (Qes)	.43
Total Q (Qts)	.39
Comp. Equivalent Vol. (Vas)	.14 ft3 / 3.9Liters
Voice Coil Overhang (Xmax)	6.0 mm
Surface Area of Cone (Sd)m2	0.014m2
Moving Mass (Mms)	19 Grams
Reference Efficiency	.7%
Displacement Volume	74 cm3
